AMERICAN LOOPERS

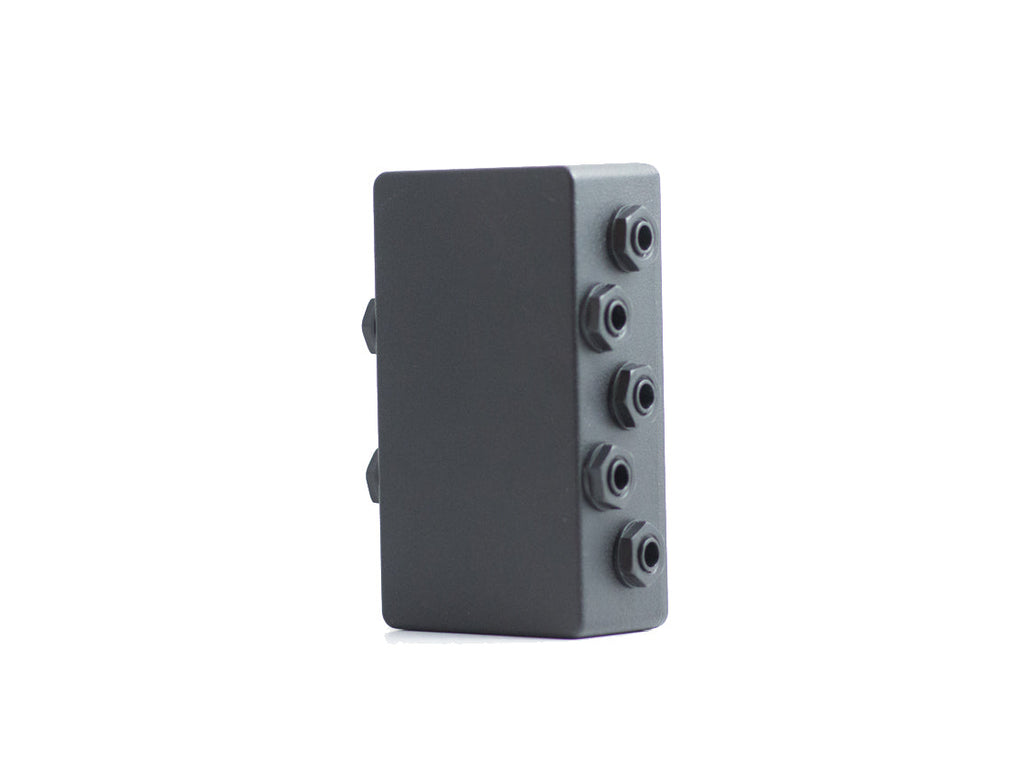

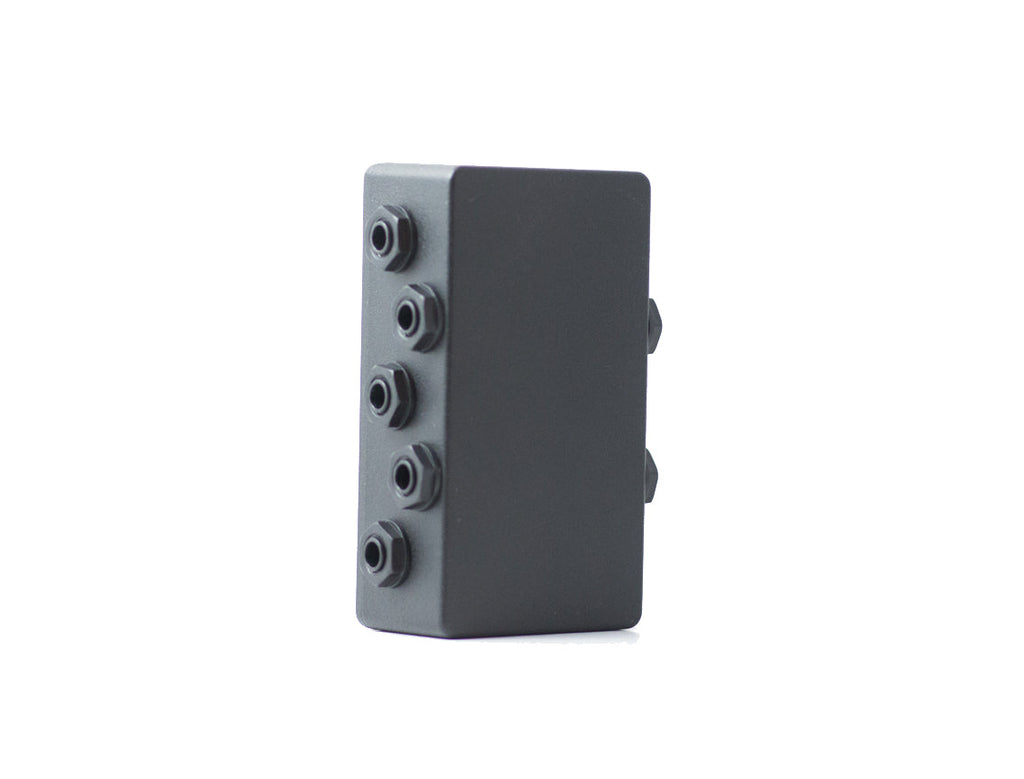

5 Way Junction Box (With One Pedal Audition) And One TRS for Amp Switching - Isolated Jacks

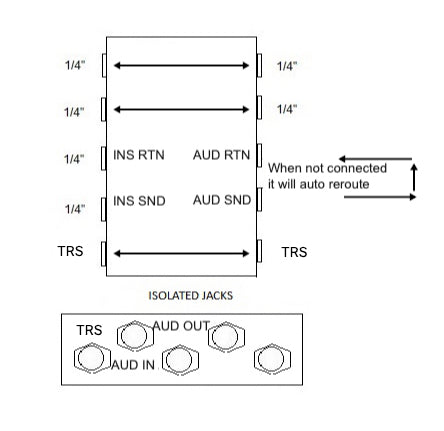

With this 5 Way Patch bay you'll have the ability to auto switch the Jacks 2 and 3 whenever they are disconnected.

This can be used in several ways. For example, you can use these two jacks to "audition" pedals in your chain. Simply connect your pedal’s inputs to the AUD IN jack of the box, and the output to the AUD OUT of the box, and you’ll will have inserted your pedal into your chain without changing cables. It’s like a true bypass loop but without the switch. Once you are done, simple pull those cables and the box will automatically reroute the jacks to bypass mode.

Another configuration is if your looper has an insert, you can put pedals in and out of the insert, without having to re-route your pedalboard or make new cables.

You can also use this box as a normal 5 Way box, so you'll have the flexibility of both options in one box.

It also includes a TRS connection so you can use that for Amp Switching, or any other connection that requires a TRS Stereo connection.

Please, if you have any questions about the functionality of this box, please do send us a message.



Features:

- Genuine Isolated Neutrik Jacks Throughout

- Saves your effect's jacks from wearing out

- Will not affect your tone

- Extra Tough Powder Coating Paint

Components:
- Military Spec Wiring
- Nickel Plated jacks
- Diecast Aluminum Enclosure


Measures:

4.8" x 2.5" x 1.4"

122 x 64 x 36 (mm)



1 year warranty!

We ship worldwide!
