AMERICAN LOOPERS

AB Loop Selector With Simultaneous Amp Switching And Master Bypass - With PREMIUM Switches


*Please note that the current build time for this product is approximately 3-5 business days.

With this pedal, you will be able to have two independent loops that will switch back and forth with just one stomp switch. Press it once you get loop A, press it again, you get loop B, while at the same time switch your amp channel. Your amp needs to work with the standard "Tip to Sleeve". Please contact us if you're not sure your amp works this way.

There are many practical uses for this pedal, for example, in loop A you can have an overdrive and in loop B you can have a chorus effect. So let's say you are playing a nice clean sound with chorus, then it comes the lead part, all  you have to do is press the switch once and the pedal will take out your clean/chorus sound and switch to your overdrive lead tone, once you are done with the solo, press it again and you are back to your clean/chorus sound, that easy!

In Brief:

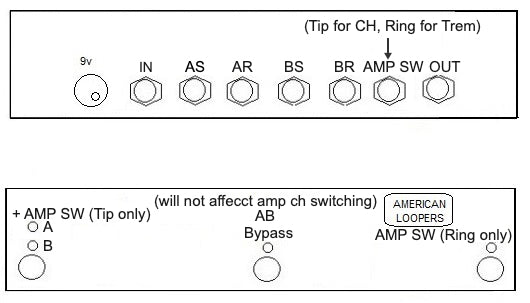

1) The AB switch will swap between Loop A and B AND ground (or lift) the Tip of the TRS jack, therefore switching your amp channel
2) The AB Bypass will only bypass the AB Loops not changing anything on the amp channel
3) AMP SW Ring will ground (or lift) the Ring of the TRS jack



*This is a custom order and cannot be returned.

Features:

"PREMIUM CHK Electronics" 3PDT switches for better tone, and durability
- Clean up and improve your tone easy!
- Nickel Plated jacks are strategically positioned to diminish cable tangling and ensure max conductance
- 9v  2.1mm Boss type connector is only needed for LEDs, unit is 100% passive
- No transformers, No electronics, 100% true bypass

Components:

"PREMIUM CHK Electronics" 3PDT switches for better tone, and durability
- Genuine Hammond Aluminium Enclosure
- Military spec wiring
- Die Cast Aluminum Enclosure
- Powder coated paint for great looks and max durability

*Please note this is NOT a Sample Looper, it will not record/playback/sample/loop guitar sounds, or any other instrument signal of any kind.


Dimensions:
9.75 x 2.6 x 2 (Inch)
24.7 X 6.6 X 5.1 (cm)

Add on Mods:

Loop Insert +$15: This Mod gives you the ability to add a non-switchable loop in between any of the loops on your looper. Most people use this for their volume pedal, or it can also be used to test out pedals without having to disconnect another.  One thing though, the position of this loop needs to be set at factory, as all our loopers are hand wired. Add this Mod HERE.

Flip Flop +$25 (Loop order switcher) : Ever wanted to just swap the order of your pedals with one toggle switch? now you can with this very handy Mod, all you need to do is decide which two consecutive loops you'd like to reverse the order on. Toggle switch included. Add this Mod HERE.



1 year warranty
